Securing IIoT Connectivity: A Defensive Guide to Protecting Factory Floor Sensors

The nightmare scenario for any OT manager isn’t a server going down; it’s the deafening silence of an assembly line grinding to a halt. This operational paralysis, often triggered by a ransomware attack that enters through the most innocuous-looking sensor, is the stark reality of converging IT and OT networks without a robust, defense-in-depth strategy. The usual IT security playbook—update everything, enforce complex passwords, run antivirus—is a fantasy in a world of 15-year-old PLCs and embedded systems that were never designed to be connected to the internet.

Conventional wisdom suggests segmenting your network with a VLAN or changing default passwords. While not wrong, this advice barely scratches the surface. It fails to address the fundamental challenge: how do you protect critical infrastructure that is, by its very nature, unpatchable and insecure? An attacker doesn’t need to hack your multi-million dollar industrial controller if they can pivot from a compromised HVAC thermostat connected to the same flat network. The threat isn’t just about data theft; it’s about operational continuity and physical safety.

This guide abandons the idealistic “rip and replace” approach. Instead, it provides a pragmatic, defensive framework for OT managers. The core principle is not to try and make each individual sensor perfectly secure, but to build a modern security fortress around your existing, imperfect, and mission-critical assets. We will explore how to create digital air gaps that still provide visibility, choose connectivity that is inherently more secure, and implement “virtual patches” that shield your most vulnerable equipment from a hostile digital world.

This article provides a detailed roadmap for building that fortress. We will dissect the most common attack vectors and provide concrete, industrial-grade strategies to counter them, from the network edge to your oldest legacy systems.

Why Connecting IoT Sensors Directly to the Office Wi-Fi Is Negligent?

Connecting a new sensor to the corporate Wi-Fi network is the path of least resistance. It is also an act of gross negligence in an industrial environment. Corporate Wi-Fi is designed for convenience and access, not for the high-stakes isolation required by Operational Technology (OT). When a factory floor sensor shares the same network as the marketing team’s laptops and the CEO’s tablet, you are creating a flat, indefensible landscape where a single compromised device can become a beachhead for a full-scale assault on your operations.

This isn’t a theoretical risk. The architecture of a pivot attack is simple: compromise the weakest link (the IoT sensor), establish a command-and-control channel, and then use that foothold to scan the internal network for high-value OT assets like SCADA systems or PLCs. The financial consequences are catastrophic; recent CISA data reveals a $13 million average cost per SCADA ransomware incident. Treating an IIoT sensor like any other IT device is not just a technical error; it’s a profound failure to understand the unique risk profile of industrial operations.

The only responsible approach is absolute network segmentation. Critical sensors must operate on physically or logically isolated networks, completely segregated from the IT environment. Anything less is an open invitation for disaster.

How to Detect When a Thermostat Starts Sending Data to a Foreign IP?

You cannot defend against a threat you cannot see. Once sensors are deployed, the primary defensive task shifts from prevention to detection. A thermostat has a predictable, mundane job: it sends small packets of temperature data to a known local controller or a specific cloud endpoint. When it suddenly attempts to connect to an unknown IP address in another country or begins uploading gigabytes of encrypted data at 3 AM, that is not a malfunction; it is a clear indicator of compromise (IoC).

The key to spotting this is behavioral baselining. Instead of relying on traditional signature-based antivirus, which is often useless against zero-day exploits and custom malware, this approach uses machine learning to build a profile of “normal” behavior for every device on the network. This includes:

• The IP addresses and ports it usually communicates with.
• The protocols it uses (e.g., MQTT, Modbus).
• The typical size and frequency of its data packets.
• The times of day it is active.

Any deviation from this established baseline triggers an immediate alert. This method is exceptionally effective at catching sophisticated attacks that traditional tools would miss. Implementing a robust anomaly detection system requires a combination of tools and processes.

As the visualization suggests, modern network operations centers can monitor thousands of data streams in real-time. Behavioral analytics engines work in the background, automatically flagging the chaotic red bursts of malicious traffic against the steady blue flow of normal operations. This allows security teams to focus on genuine threats rather than being overwhelmed by a flood of false positives.

The following table, adapted from Palo Alto Networks’ analysis, shows why behavioral analytics is the superior method for detecting anomalies in an IIoT environment, despite its implementation complexity.

While complex, investing in a platform that provides these capabilities is no longer optional. It is the only way to gain the necessary visibility to detect a compromised sensor before it becomes the entry point for a factory-wide shutdown.

Private 5G vs Wi-Fi: Which Connectivity is Safer for Critical Sensors?

The choice of wireless connectivity for your sensors is a foundational security decision. While Wi-Fi is ubiquitous and inexpensive, its security model is fundamentally weaker and more susceptible to common attacks than that of a private 5G network. For critical sensors that control physical processes, prioritizing robust security over initial cost is paramount.

Wi-Fi, even with WPA3, relies on mechanisms like pre-shared keys (PSKs) or MAC address filtering, which are notoriously easy to spoof or crack. The airwaves are a shared medium, making Wi-Fi networks vulnerable to denial-of-service attacks like de-authentication floods or “Evil Twin” hotspots that trick devices into connecting to a malicious access point. VLANs can provide some segmentation, but this is a logical separation that can be bypassed.

Private 5G, by contrast, was designed with a “zero-trust” security architecture from the ground up. Its superiority for critical applications stems from several key features. This is why IoT Analytics forecasts a 65.4% CAGR growth for private 5G connections in industrial settings through 2030. The industry is recognizing its defensive advantages.

The following table breaks down the core security differences between the two technologies:

The most significant differentiator is the authentication method. Private 5G uses tamper-resistant SIM cards (physical or embedded eSIMs) for authentication. Each device has a unique, cryptographically secure identity that is nearly impossible to clone. Furthermore, network slicing allows an operator to create multiple virtual networks on a single physical infrastructure, each with its own guaranteed Quality of Service (QoS) and security policies. A slice for critical robotic arms can be completely isolated from the slice used for non-essential environmental sensors, creating a level of isolation far superior to Wi-Fi VLANs.

While the initial deployment cost of a private 5G network is higher, it should be viewed as an investment in operational resilience. For sensors governing processes where downtime is measured in millions of dollars per hour, the robust, deterministic, and inherently secure nature of private 5G is not a luxury; it is a necessity.

The Default Password Risk: How to Manage Credentials for 500 Sensors?

The advice to “change default passwords” is the most common and, in an industrial context, one of the most useless pieces of security guidance. The reality is that many OT and IIoT devices either ship with hardcoded credentials that cannot be changed or have such a primitive interface that managing unique passwords across hundreds or thousands of deployed units is an operational impossibility. The problem is widespread; shocking statistics reveal that 35% of consumer IoT devices ship with default credentials, and the situation is often worse in the slow-moving industrial sector.

An attacker running a simple script to scan for devices using “admin/admin” or “root/password” can gain access to a shocking number of devices on a network. Since you cannot reasonably fix the password on every single sensor, you must architect a system that makes the password irrelevant. This is achieved through a zero-trust credential architecture.

This approach assumes that the credentials on the device itself cannot be trusted. Instead of relying on a weak password, security is enforced by external systems that manage identity, authentication, and authorization. Key components include:

• Certificate-Based Authentication: Each sensor is provisioned with a unique digital certificate from a private Public Key Infrastructure (PKI). This certificate, not a password, is used to prove its identity to the network. These certificates can be short-lived and automatically rotated, drastically reducing the window of opportunity for an attacker.
• Hardware-Backed Storage: On modern devices, these certificates should be stored in a Trusted Platform Module (TPM) or Secure Element. This specialized hardware makes it physically impossible to extract or clone the device’s identity credentials.
• Credential Proxy: For legacy devices that don’t support certificates, a credential proxy can be used. The legacy device communicates using its weak credentials to a trusted proxy in its immediate network segment. The proxy then uses a strong, certificate-based identity to communicate with the rest of the network, effectively wrapping the insecure device in a layer of modern security.

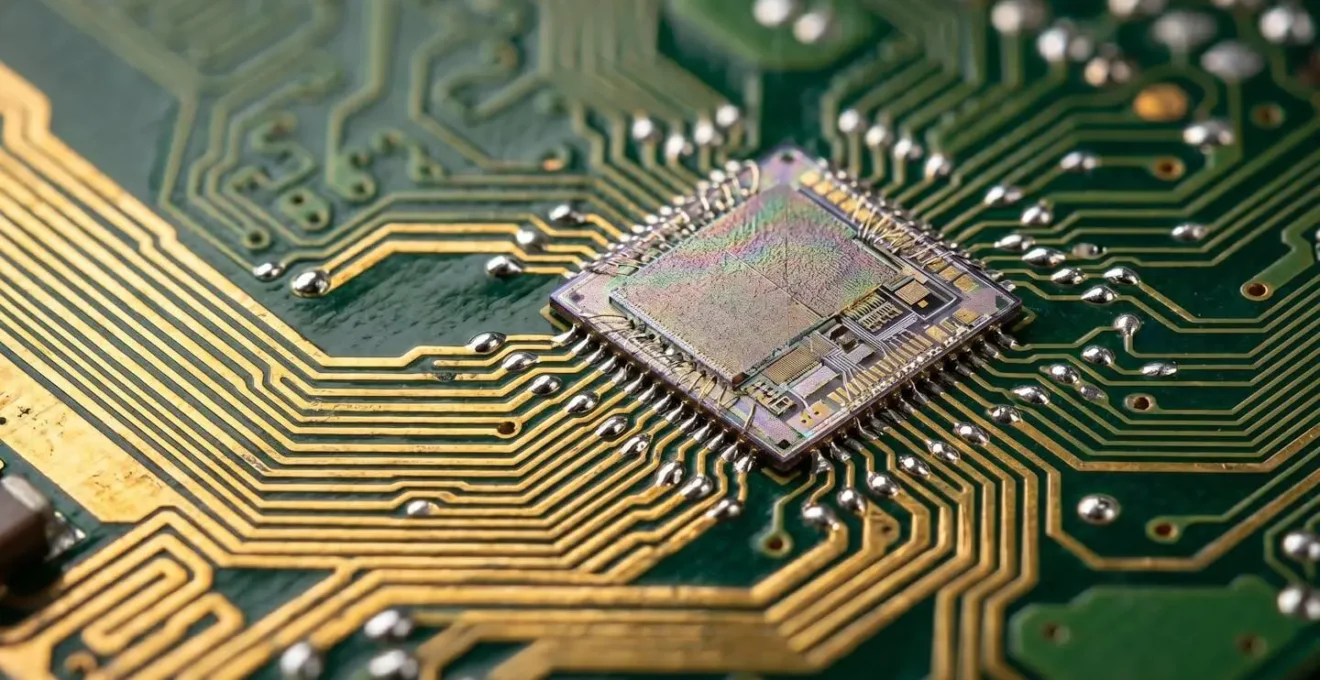

This macro view of a security chip illustrates the physical foundation of modern credential management. By embedding identity in tamper-resistant silicon, you move security from a soft, easily compromised password to a hard, verifiable hardware root of trust.

The goal is to create a system where a default password, even if present, is a useless artifact. By building a perimeter of strong, certificate-based identity and authentication around your devices, you neutralize the risk at scale without needing to touch every single sensor.

What Happens When the Internet Cuts: Designing Local Fallbacks for IoT

A secure IIoT architecture must also be a resilient one. Your factory cannot afford to shut down simply because a backhoe severed a fiber optic cable or a cloud provider is experiencing an outage. A system that relies exclusively on cloud connectivity for core functions is a system that is brittle and destined to fail. Designing for “graceful degradation” is not an option; it’s a core requirement of industrial engineering.

The principle is simple: the system must maintain its most critical functions even when external connectivity is lost. This is achieved through a multi-tiered operational model that leverages local edge controllers. These controllers act as on-premise brains, capable of running the factory floor autonomously for a period of time.

This resilience is built upon a three-tier fallback architecture:

1. Level 1 – Full Connectivity: This is the normal operational state. Data flows freely to the cloud for advanced analytics, predictive maintenance, and remote monitoring.
2. Level 2 – Local Network Only: If the external internet connection is lost, the system “fails over” to the local edge controllers. Critical control loops are maintained, and production continues. Non-essential cloud-based analytics are temporarily unavailable.
3. Level 3 – Device Isolated: In the worst-case scenario where a device loses connection even to the local network, it should execute a pre-programmed safe-state routine, such as shutting down a robotic arm or closing a valve, to prevent damage or injury.

Implementing this architecture also requires a robust Store-and-Forward mechanism. This ensures that sensor readings, quality metrics, and operational logs collected during an outage are not lost but are queued for upload once the connection is re-established. This is vital for maintaining a complete data record for compliance and analysis.

By designing for failure, you ensure continuity. An internet outage should be a minor inconvenience for your data analysts, not a catastrophic event for your production line.

How to Air-Gap Your Critical Machines Without Losing Data Visibility?

For the most critical assets on the factory floor—the “crown jewels” like primary industrial controllers or safety systems—the only acceptable level of risk is zero. This is where the concept of an “air gap” comes in: physically isolating a system or network from all other insecure networks, including the internet. However, a true air gap creates a major operational problem: if no data can get in, how do you get data *out* for monitoring, analysis, and process optimization?

The solution is not a firewall. A firewall is a permeable, software-based filter that is notoriously complex to configure and prone to vulnerabilities. The true industrial solution is a hardware device known as a data diode. A data diode is a networking device that enforces one-way data flow at a physical, hardware level. It uses a fiber optic connection where the transmitter on the “secure” side is paired with the receiver on the “insecure” side, but the corresponding return path is physically removed. Data can flow out, but it is physically impossible for any data—or any attack—to flow back in.

This creates a perfect balance: you get the absolute security of a physical air gap with the data visibility required for modern operations. However, what about situations where data (like a software patch, after rigorous vetting) needs to be brought *into* the secure zone? This requires a strict, manual workflow often called the “sneakernet.”

A secure workflow for transferring data into an air-gapped system includes writing data to removable media, physically carrying it to a dedicated, isolated “sheep dip” terminal for exhaustive malware scanning, and only then introducing it to the secure network. It’s a deliberately slow and cumbersome process designed to force methodical security reviews.

For your most invaluable assets, a data diode isn’t just best practice; it is the only defensible architecture. It replaces the fallibility of software rules with the certainty of physics.

Why Encrypting Only “At Rest” Leaves Your Data Exposed During Emailing?

Encrypting data “at rest”—meaning when it is stored on a hard drive or in a database—is a fundamental security practice. However, it is only one piece of a three-part puzzle. Data has three states: at rest, in use, and in transit. Leaving data unencrypted while it is moving across the network is like putting your valuables in a locked safe but then sending them across town in a clear plastic bag. This is especially true for IIoT data, which often traverses multiple networks and protocols.

Many legacy industrial protocols, like Modbus, were created decades ago and transmit data in plain text, with no built-in security. An attacker with access to the network can simply “sniff” the traffic and read—or even modify—the data as it flows between a sensor and a controller. This could allow them to feed false readings to an operator or inject malicious commands into a physical process.

Data moving through an IIoT network—whether between devices, to a gateway, or the cloud—needs to be protected in transit. Simple, plain-text protocols like Modbus don’t have enough security.

– SoftServe IIoT Security Team, Secure Your Industrial IoT Network: Proven Strategies

To secure data in transit, protocols like Transport Layer Security (TLS)—the same technology that secures web browsing with HTTPS—are used. However, even standard TLS can have a vulnerability window. Often, TLS connections are terminated at a gateway or load balancer for inspection, leaving the data briefly decrypted in memory before it is re-encrypted to be sent to its final destination. An attacker who compromises that termination point can access the plain-text data.

The gold standard is end-to-end encryption (E2EE), where data is encrypted on the originating sensor and can only be decrypted by the final recipient application. It remains encrypted even as it passes through gateways, brokers, and cloud platforms. The following table compares the protection offered by each method.

While implementing E2EE can be complex and may not be feasible for all legacy devices, it should be the default goal for all new IIoT deployments. For existing systems, using protocols like MQTT over TLS is a significant improvement over plain-text communication and represents a necessary layer in a defense-in-depth strategy.

How to Maintain Critical Infrastructure Integrity on 15-Year-Old Legacy Systems?

This is the ultimate challenge for any OT manager. You have a critical piece of machinery, controlled by a computer running Windows XP, that hasn’t been patched in a decade because the vendor went out of business and the software is too fragile to touch. Ripping it out is not an option. This is the single biggest point of failure in industrial cybersecurity, and alarming 2024 statistics show that 99% of industrial organizations experienced cyber incidents through such unpatched legacy systems. When you cannot patch the vulnerability, you must shield it from attack.

This is where the concept of virtual patching comes into play. A virtual patch is not applied to the vulnerable system itself. Instead, a device like an Intrusion Prevention System (IPS) is placed in front of the legacy machine. The IPS is programmed to recognize and block any network traffic that attempts to exploit the known vulnerability. It effectively creates a force field around the old system, protecting it without ever touching its delicate software.

This shielding is part of a broader strategy of micro-segmentation and integrity monitoring:

By implementing these layers of external control, you are treating the legacy system like an unstable artifact in a museum. You don’t try to repair the artifact itself; you build a climate-controlled, reinforced-glass case around it and monitor it 24/7. This approach accepts the reality of your environment and provides a robust, pragmatic path to securing your most critical—and most vulnerable—assets.

The integrity of your production line depends not on waiting for a full modernization cycle that may never come, but on your ability to implement these defensive layers now. Begin by auditing your most critical, unpatchable assets and building a shield around them today.
